| Weight | 225 g |
|---|---|
| Dimensions | 54 × 53,6 × 126 mm |
| Product Type |
I/O |
| Type/Class | |
| Supply voltage range |
24vdc |
| Amperage |
100ma |
| Tension/Power ES |
24vdc |
| Output amperage |
0,5a |
| Mounting |
Rail din 35mm |
| Width (mm) |
53,6 |
| Height (mm) |
126 |
| Depth (mm) |
54 |
| Mounting type |
Push-in |
| Type E/S |
Counter input |
| AWG Min : |
24 |
| AWG Max : |
16 |
| Number of stage |
4 |
| Number of connection |
36 |
| Approbation |
UL,cUL,cULus |

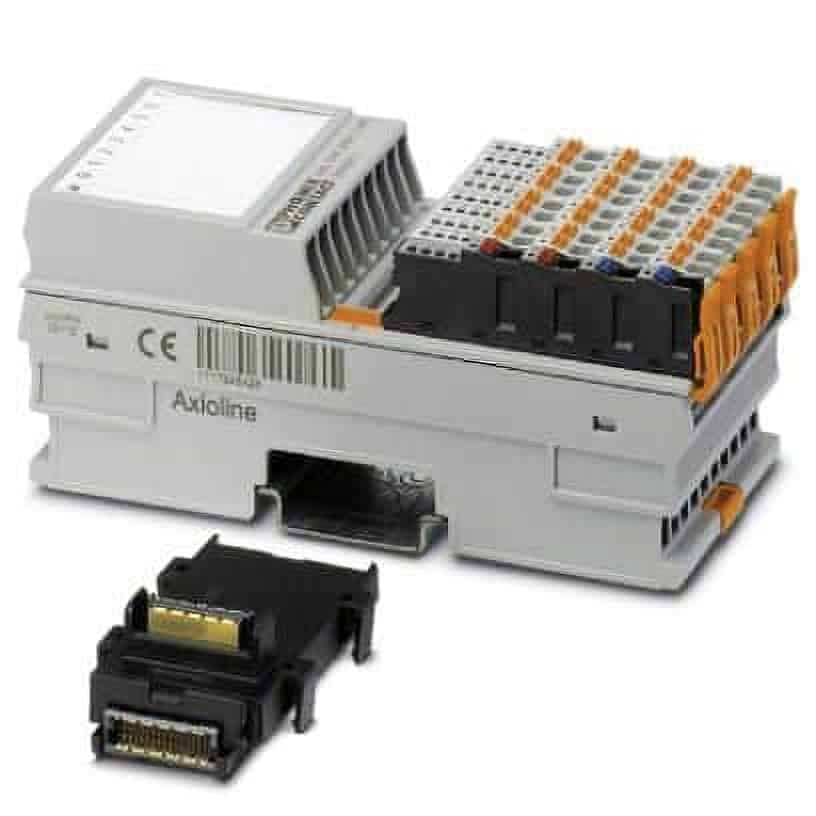

Phoenix Contact 2688093 Special function module – AXL F CNT2 INC2 1F
681,46$
Axioline F, Function module, Counter input for 24 V signals: 2, Incremental encoder inputs: 2, Symmetrical and asymmetrical encoders, Digital inputs: 8, 24 V DC, Digital outputs: 2, 24 V DC, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors.
2 in stock
Warwick, QC2
Shipping Policy HERE.
Additional information
Description
Phoenix contact 2688093 – Special function module – AXL F CNT2 INC2 1F
Axioline F, Function module, Counter input for 24 V signals: 2, Incremental encoder inputs: 2, Symmetrical and asymmetrical encoders, Digital inputs: 8, 24 V DC, Digital outputs: 2, 24 V DC, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors bus base module and Axioline F connectors
Competitive and shipped within 24 hours.
The module is intended for use in an Axioline F station. It is used for the acquisition of faster pulse sequences from the sensors on the one hand, and for the acquisition of positions by means of an incremental encoder on the other. The module combines two counter inputs for the analysis of faster counting pulses and two incremental encoder inputs for position acquisition.
The advantages Phoenix Contact 2688093 Function module – AXL F CNT2 INC2 1F
- 2 channels, selectable for each channel: counter function or position detection using incremental encoder
- Maximum input frequency: 300 kHz (one channel wired) or 100 kHz (both channels wired)
- 32-bit counter (up and down)
- Output control according to two limit values
- Counter: counting (source) is controlled via a control input (gate)
- Counter: single or periodic counting
- Incremental encoder acquisition: Acquisition of digital signals from symmetrical and asymmetrical incremental encoders
- Incremental encoder acquisition: evaluation of linear or rotary axes
- Device rating plate stored
You have questions? Contact us for more information! Click here
If this product is in stock, it means that we have it in inventory and can ship it the same day. Limit your lost income and get your equipment back up and running quickly!
Also available: Phoenix Contact 2688077 Analog Module – AXL F RTD8 1F
Product CA : CES24V4EI
Manufacturer : Phoenix Contact
SKU : 2688093
https://www.phoenixcontact.com/en-ca/products/io-component-axl-f-cnt2-inc2-1f-2688093
