ICB12S30F04NOM1 – Carlo Gavazzi | M12 Inductive Proximity Sensor, M12 Connector, 4 mm Sensing Distance, NPN NO Output – Short Body

ICB12S30F04NOM1 – Carlo Gavazzi – Inductive proximity sensor, M12 Nickel-Plated Brass, M12 plug, Sn 4mm, Flush mount, Short body, NPN NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, -25C – +70C, IP67

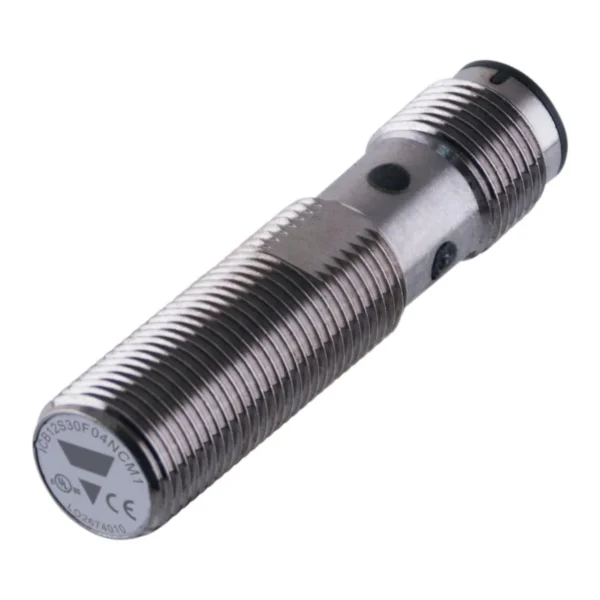

The Carlo Gavazzi ICB12S30F04NOM1 is an inductive proximity sensor from the ICB series, designed for reliable and precise detection of metal objects in demanding industrial environments. It combines robustness and performance to meet the needs of complex automated applications while ensuring high reliability.

Thanks to its solid design and advanced features, the sensor offers several advantages. Its 4 mm sensing distance with flush mounting allows efficient, contactless detection, reducing wear and failure risk. The nickel-plated brass housing provides durability and excellent corrosion protection, making it suitable for harsh environments with moisture, dust, or vibrations.

The sensor features a normally open (NO) NPN output, enabling easy connection to PLCs and other control systems, which ensures quick and simple integration. Its switching frequency of up to 2 kHz delivers fast, reliable detection, enhancing machine responsiveness and productivity.

With a wide supply voltage range (10–36 V DC), it can be used across different equipment, simplifying integration, maintenance, and system expansion. Finally, the IP67 rating makes it dust-tight and resistant to temporary immersion, ensuring long-lasting performance even in tough conditions.

In summary, this sensor combines robustness, precision, and adaptability to meet all industrial requirements.

✅ Key Advantages of Carlo Gavazzi ICB12S30F04NOM1

• Precise detection: 4 mm sensing distance with flush mounting.
• Robust construction: nickel-plated brass housing resistant to corrosion.
• NPN NO output: easy integration into automated systems.
• High switching frequency: up to 2 kHz for fast detection.
• Wide supply voltage range: 10 to 36 V DC.
• IP67 protection: dust-tight and water-resistant.
• Integrated LED indicator: for easy monitoring of switching status.
• Compliance with international standards: IEC 60947-5-2 certified.

📄 Specifications – Carlo Gavazzi ICB12S30F04NOM1

• Sensor type: Inductive
• Sensing distance: 4 mm
• Mounting: Flush
• Housing diameter: M12

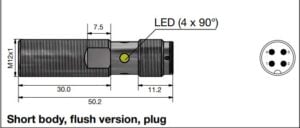

• Housing length: 30 mm (short body)
• Housing material: Nickel-plated brass
• Output type: NPN, normally open (NO)
• Supply voltage: 10–36 V DC
• Maximum output current: 200 mA
• Maximum switching frequency: 2 kHz
• Operating temperature: -25 °C to +70 °C
• Protection rating: IP67
• Connection: M12 connector

The Carlo Gavazzi ICB12S30F04NOM1 inductive sensor is designed for contactless detection of metal parts in industrial environments. Here are the typical applications where this sensor is commonly used:

🔧 Main Applications – Carlo Gavazzi ICB12S30F04NOM1

• Industrial Automation
• Detection of metal parts on conveyors
• Positioning of mechanical components
• Control of cylinders or actuators
• Presence or absence detection of parts in automated machines
• Machine Tools
• End-of-travel control
• Detection of moving component positions
• Safety for mechanical operations
• Packaging Industry
• Detection of metal components on packaging lines
• Position or stop control
• Robotics
• Detection of robotic arm positions
• Monitoring of cyclic movements
• Transport Systems and Conveyors
• Tracking of pallets, metal bins, or carts
• Obstacle detection or end-of-line detection
• Automotive
• Detection of metal parts on production lines
• Integration into quality control jigs

To limit revenue losses, it is crucial to act without delay. By doing so, you can quickly get your equipment back in operation and resume your activities smoothly. Moreover, this quick response prevents unnecessary delays that could further impact productivity.

Indeed, every minute of downtime represents a direct risk to your profitability. That’s why acting quickly is essential. In other words, the sooner you intervene, the more you reduce negative impacts. Thus, by ordering now, you ensure a fast and efficient recovery of operations while better controlling costs. Additionally, this proactive approach significantly reduces losses from unexpected interruptions or extended delays.

Furthermore, our service provides not only a rapid response but also high-quality support. In fact, this dual promise allows us, on one hand, to address urgent needs quickly and efficiently, and on the other hand, to minimize issues that could disrupt your operations. Thus, by choosing our support, you gain reliability, performance, and operational continuity.

Also available: ICB12L50F04NOM1 – Carlo Gavazzi | M12 inductive proximity switch, M12 connector, 4 mm sensing, NPN NO output

CA Product: CINM12DCNPN/NO4MM-C

Manufacturer: Carlo Gavazzi

SKU: ICB12S30F04NOM1

EAN : 8030956073072

Manufacturer’s technical data : Click here!
