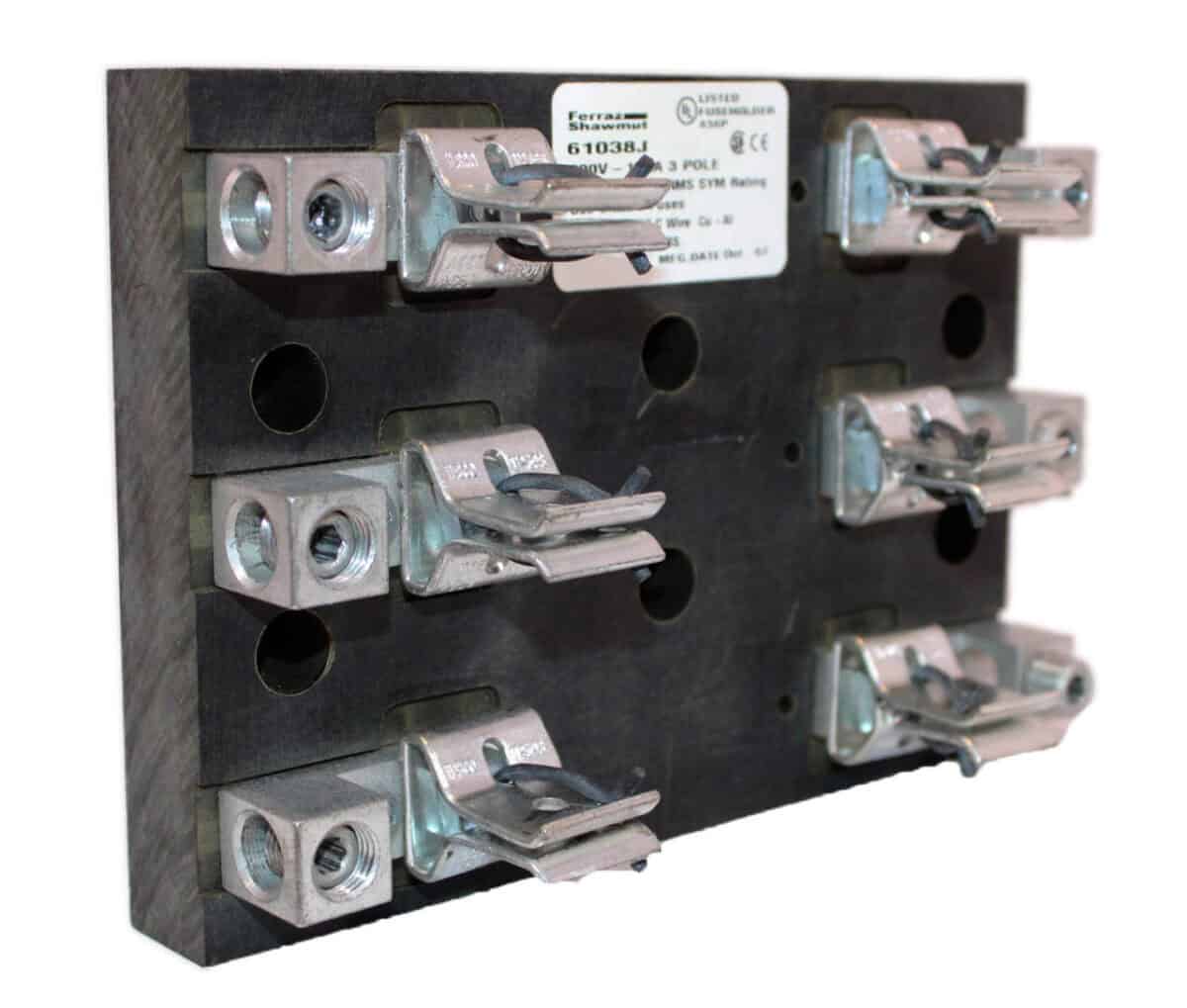

61038J Mersen – Fuse Holders 600V Class J 200A 3-pole Box Side-Clip (70-100A)

61038J Mersen – 100A 3-pole 600V type J fuse-holder for side-clipped class J fuses (70-100A)

The 61038J fuse holders from Mersen, for a choice of screw, clamping plate, box and rod connections on special request. Mersen fuse holders offer a wide variety of connections for solid or stranded conductors, copper or aluminum. Insulators are made of fiberglass-reinforced polycarbonate (FRP) or phenolic with a dielectric strength in excess of 2500V.

All fuse clips are made from high-conductivity tin-plated copper, with or without springs.

More compact options are now available in 30A and 100A versions as described in the product selection tables.

If this product is in stock, it means we have it in stock and can ship it the same day.

Limit your loss of income and get your equipment up and running again quickly. ORDER NOW!!!

RECOMMENDATIONS FOR USE

Class J (600V) fuse holders are designed for AJT, A4J, HSJ series fuses.

SPECIFICATIONS – 61038J Mersen

• Rated voltage: 600v
• Maximum rated current: 100a
• Fuse class: class J
• AC or DC: AC/DC
• Number of poles: 3-pole
• Rated short-circuit current (SCCR): 200 kA
• Mounting system: Direct screw mounting

APPROVALS AND STANDARDS – 61038J Mersen

• UL 4248-8, UL file number E52283
• certified CSA C22.2 class 6225, file number CSA 32169

If this product is in stock, it means that we have it in inventory and can ship it the same day. Limit your loss of income and get your equipment up and running again quickly by ordering your fuse holder now.

You have questions? Contact us!

Also available: 62003J Mersen – Fuse Holders 600V Class J 200A 3-pole Box Side-Clip (101-200A)

CA Product : FCCPF3P600V100A

Manufacturer : Ferraz Shawmut SKU: 61038J

Manufacturer’s technical data : Click here!
