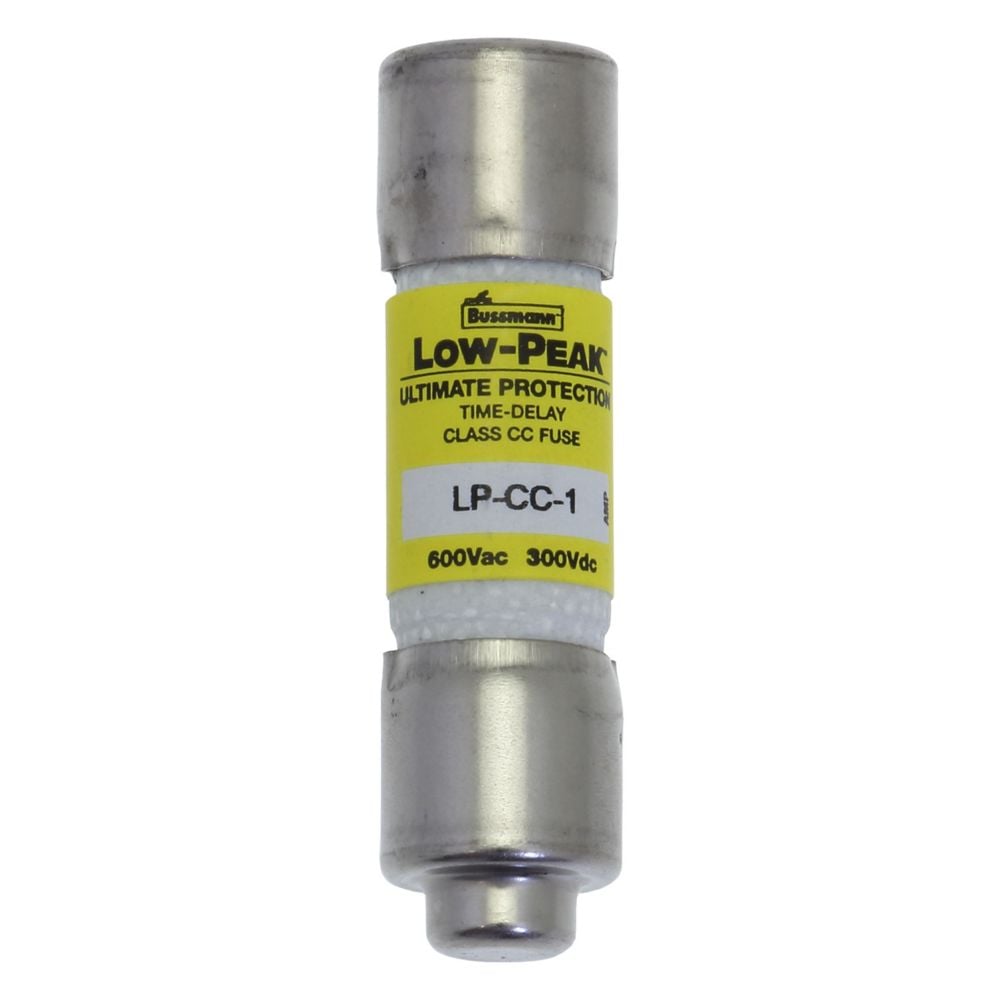

LP-CC-1 Bussmann / Eaton – series Class CC fuse,600 Vac 300 Vdc 1 A, Current-limiting time-delay, Low-Peak™ Cartridge

LP-CC-1 Bussmann Eaton | LP-CC Series Fuse Class CC, 600VAC / 300VDC  1A, Time-Delay Cartridge Low-Peak™ Series 200 kA at 600 V AC and 20 kA at 300 V DC.

The LP-CC-1 fuse, part of Eaton Bussmann’s Low-Peak™ series, offers a highly efficient electrical protection solution, specifically designed to meet the strict requirements of industrial, commercial, and institutional environments. Indeed, thanks to its dual-element time-delay technology, this Class CC fuse provides reliable protection against short circuits and electrical overloads, while also allowing optimal selective coordination with other electrical safety devices.

Moreover, its compact design and standardized format (13/32″ x 1-1/2″) enable easy integration into electrical panels without compromising space or system performance. This universal format also allows for quick replacement in existing systems, thereby reducing downtime during maintenance operations.

Additionally, the LP-CC-1 is engineered to offer a high interrupting rating, reaching up to 200,000 amperes at 600 VAC, making it perfectly suited for high-energy applications. Whether used to protect control circuits, transformers, small motors, or sensitive equipment, this fuse ensures maximum safety and enhanced durability, even under the most demanding operating conditions.

Furthermore, it is important to note that this product is fully certified to UL 248-4, CSA, and CE standards, ensuring compliance with international electrical safety requirements. As such, this certification is a key asset for projects that demand a high level of reliability and strict regulatory traceability.

🔧 TECHNICAL SPECIFICATIONS – LP-CC-1 Bussmann / Eaton

• Fuse Type: Cartridge
• Class: CC (Class CC)
• Rated Current: 1 A
• Rated Voltage: AC: 600 V / DC: 300 V
• Interrupting Rating: AC: 200 kA / DC: 20 kA
• Response Time: 12 seconds at 200% of rated current
• Dimensions: Diameter: 10.3 mm (13/32 in) / Length: 38.1 mm (1-1/2 in)
• Mounting Type: Rejection style
• Termination Type: Ferrule ends
• Body Material: Melamine tube
• Elements: Dual-element
• Blown Fuse Indicator: Non-indicating
• Compliance: UL 248-4, CSA, CE

✅ ADVANTAGES – LP-CC-1 Bussmann / Eaton

• Effective overload and short-circuit protection thanks to Low-Peak™ technology
• Simplified selective coordination with other fuses in the range
• Inventory reduction thanks to versatility of use
• Maximum adaptability in industrial and commercial environments
• UL, CSA, CE compliant for worldwide use

🛠️ APPLICATIONS

• Industrial control and command circuits
• Protecting sensitive electrical equipment
• Automated systems and industrial machines
• Low-voltage power supply systems in the commercial sector
• Switchboards requiring selective protection

📄 APPROVALS AND STANDARDS

• UL listed to standard 248-4 File E2137
• CSA-certified to C22.2 no. 248.4
• CE

🎯 RECOMMENDED FUSE HOLDER LP-CC-1 Bussmann / Eaton

UltraSafeTM fuse holders with indication / closed

• 31-60A 1-pole closed fuse holder: USM1I
• Fuse-holder 31-60A 2-pole closed: US6J2I
• 31-60A 3-pole closed fuse holder: US6J3I

Midget fuse holder Pressure plate connection / Open

• Midget/CC fuse holders 30A 1P 600V open: 30321
• Midget/CC fuse holder 30A 2P 600V open: 30322
• Midget/CC fuse holders 30A 3P 600V open: 3032

Available in various amperages : ATDR10 – Class CC 10A 600V time-delay fuse

💬 Need help finding a product? Contact us today!

Can’t find the part or component you’re looking for on our website?
Contact us now through our Contact Us page. Our team is here to help you minimize downtime and get your equipment back up and running quickly.

Every minute of interruption can result in lost productivity—and ultimately lead to significant revenue loss. To avoid this, place your order as soon as possible to ensure the continuity of your operations.

Moreover, thanks to our responsive customer service and efficient supply chain, you benefit not only from fast delivery but also from reliable, high-quality technical support. As a result, you can minimize disruptions that could impact your business.

CA Product : PFTCC1-B

Manufacturer : Eaton Bussmann

SKU: LP-CC-1

EAN : 5027590446914

Technical data : Click here!
