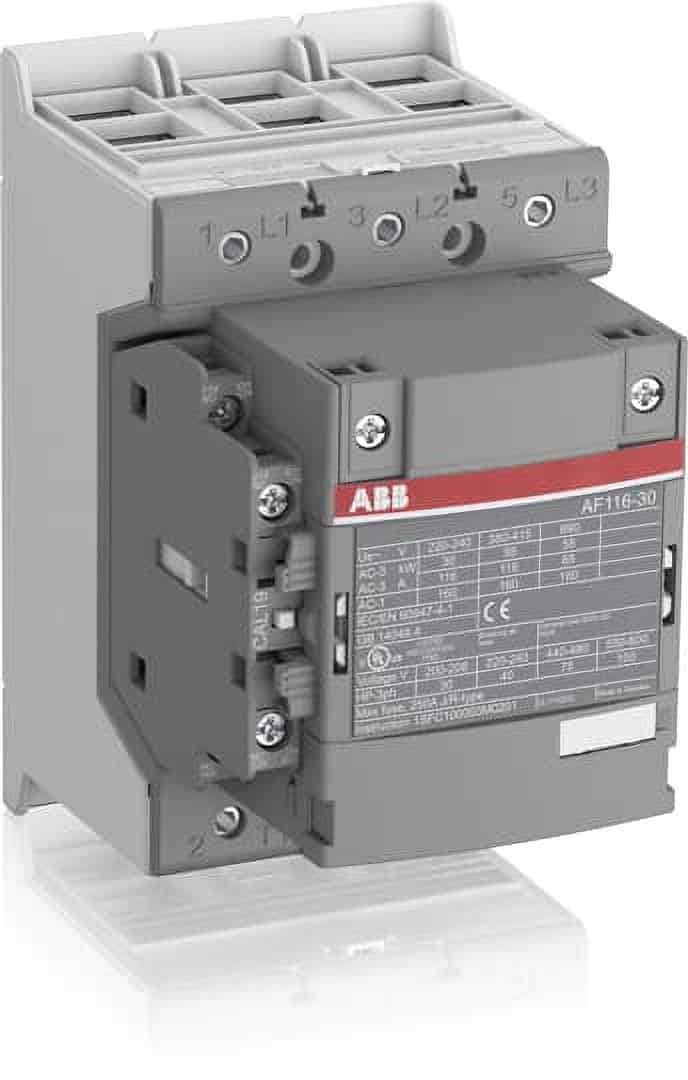

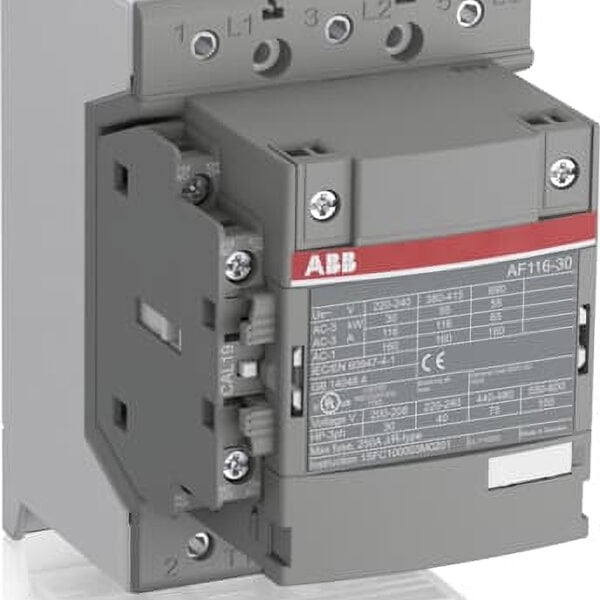

ABB AF116-30-11-13 | CTR,3P,104A,100-250VAC/DC,1/1 Contactor
| Weight | 325 g |
|---|---|
| Dimensions | 90 × 126 × 150 mm |
| Product Type | Contactor |
| Type/Class | AF |
| Voltage | 600v |
| Number of connection | 3 |
| Depth (mm) | |
| Amperage | 160a |
| Width (mm) | |
| Height (mm) |
ABB AF116-30-11-13 | CTR,3P,104A,100-250VAC/DC,1/1- Contactor, 104A 100HP Coil 100-250AC/DC 3 NO Power supply, 1 NO/1 NC Auxiliary
The AF116-30-11-13 is a 3-pole contactor – 690 V IEC or 600 V UL with pre-mounted auxiliary contacts and double clamp, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switch mode power circuits up to 160 A (AC-1) or 160 A UL general purpose
With AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), handling large variations in control voltage, reducing panel power consumption and ensuring distinct operation in unstable networks. The surge protection is integrated, offering a compact solution.
AF contactors have a block design, with additional auxiliary contact blocks and a wide range of additional accessories.
Shipped within 24 hours at a competitive price
Applications
For controlling three-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000V AC. and 440 V DC. All AF contactors can be assembled side by side. Complementary auxiliary
Specification Description
- Includes NEMA sizes 4 to 8
- CE mark
- 1 NO and 1 NC auxiliary contact are standard and up to 6 additional auxiliary contacts can be added to provide a total of 8 (4 NO and 4 NC)
- The contactors provide positive safety between their auxiliary contact blocks.
- DC ratings and DC control operation available
- Easy maintenance of the main contacts and inspection of the coil
- Can be mounted in any position
- Connection lugs sold separately
- Operates over an extended voltage range of 85% to 110% of rated control voltage
- NEMA, UL, IEC, CSA, VDE and most other international standards
- UL File Number: E36588 (A/AF145 – AF750) E73397 (AF1350 – AF1650)
- CSA file number: LR19700
Limit your lost income and get your equipment back up and running quickly!
Also available: ABB AF09-30-10-13 – Contactor 600VAC 25A 7.5HP – Coil 100-250VAC/DC
Product CA : PC600160A-250VAC/DC
Manufacturer : ABB
SKU: AF116-30-11-13 | 1SFL427001R1311
Manufacturer’s data sheet: https: //new.abb.com/products/fr/1SFL427001R1311/af116-30-11-13
