Power Supply unit – UNO – PS/1AC/24DC/60W

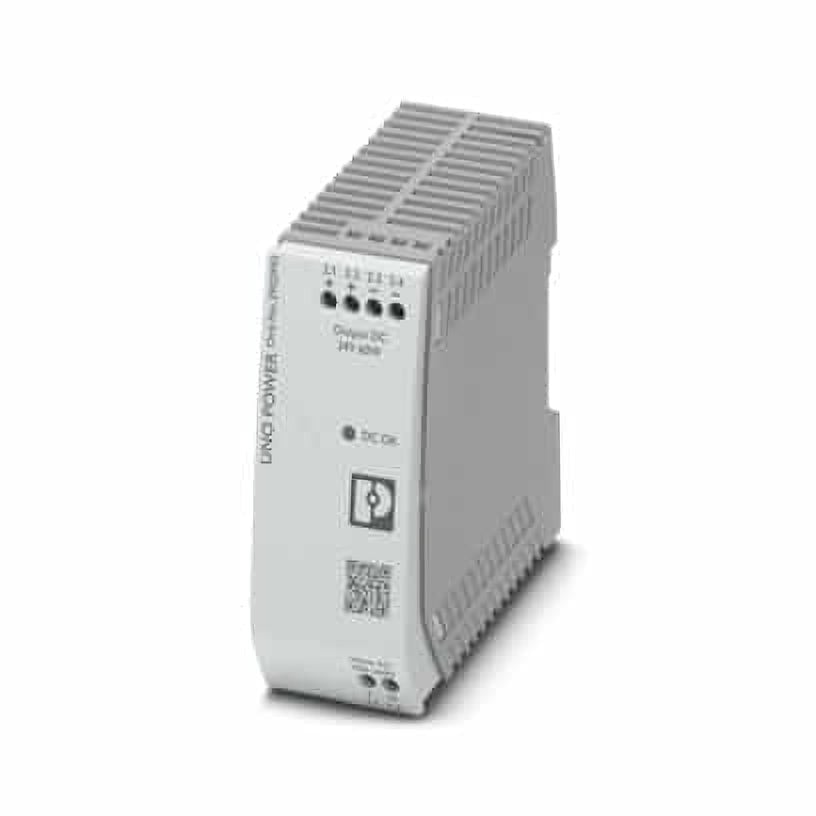

2902992 Pheonix Contact – Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/60 W
Competitively priced and shipped within 24 hours
| Weight | 243,3 g |
|---|---|
| Dimensions | 84 × 35 × 90 mm |
| Product Type |
Power source |
| Input voltage |
100…240vac |
| Voltage output |
24vdc |
| Ampérage entrée |
1,3a |
| Output amperage |
2,5a |
| Power | |
| Number of connection |
6 |
| AWG Min : |
24 |
| AWG Max : |
14 |
| Indicator |
LEDs |
| Mounting |
Rail din 35mm |
| Approbation |
UL,cUL,CSA |
2902992 Pheonix Contact – Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/60 W
UNO POWER power supplies with basic functionality
Thanks to their high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes.
The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.
Competitively priced and shipped within 24 hours
SPÉCIFICITÉS
- Nominal input voltage range 100 V AC … 240 V AC
- Nominal output voltage 24 V DC ±1 %
- Current consumption typ. 1.3 A (100 V AC) typ. 0.6 A (240 V AC)
- Nominal output current (IN) 2.5 A (-25 °C … 55 °C)
- Output power 60W
YOUR ADVANTAGES
- Flexible mounting by simply snapping onto the DIN rail
- More space in the control cabinet with up to 20 % higher power density
- Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W
- Outdoor installation, thanks to the wide temperature range from -25°C to +70°C
If this product is in stock, then we have it in stock and can ship it the same day. Limit your lost income and get your equipment back up and running quickly! Limit your lost income and get your equipment back up and running quickly!
Also available : 2903153 Phoenix Contact – UNO Power 24Vdc 120W 3 phase input
Product CA : ASA24V60W
Manufacturer : Phoenix Contact
SKU : 2902992
