LPCB104 Lovato Electric – Pushbutton actuator, spring return Ø22mm Platinum series chromed plastic, flush, Red 🔴

🔴 LPCB104 Lovato Electric – Pushbutton actuator, spring return Ø22mm Platinum series chromed plastic, flush, Red

The LPCB104 from Lovato Electric is a flush (spring-return) pushbutton from the Platinum Ø22 mm series. It is designed to easily meet the control and signaling needs in industrial, commercial, and tertiary environments.

Indeed, thanks to its modern design, with a chrome-plated plastic ring and a red head, this pushbutton fits perfectly not only into electrical cabinets but also into control panels. Thus, it ensures reliability and long service life over time.

Moreover, thanks to its robust design and compliance with international standards such as IEC, UL, and CSA, it offers excellent resistance to harsh conditions. Thus, with an IP66, IP67, and IP69K protection rating, the LPCB104 remains reliable and efficient, even in particularly demanding environments. Consequently, you can use it with confidence for critical installations.

Furthermore, its standard Ø22 mm size makes it compatible with many accessories and multiple Lovato Electric auxiliary contacts. This makes installation easier, while also facilitating maintenance and system expansion.

In summary, the LPCB104 Lovato Electric is an ideal solution for professionals looking for a red industrial pushbutton combining modern design, robustness, and above all, compliance with safety standards.

🔧 TECHNICAL SPECIFICATIONS – LPCB104 Lovato Electric

• Product type : Flush pushbutton (spring return)

• Manufacturer reference : LPCB104

• Series : Platinum Ø22 mm (chrome-plated plastic)

• Color : Red

• Illuminated element : No

• Mechanism : Spring return (momentary impulse)

• Material : Polyamide (chrome-plated plastic ring)

• Operating force : < 0.5 kg (≈ 1.1 lb)

• Mechanical life : 5,000,000 cycles

• Dimensions : Standard Ø22 mm

• Operating temperature : –25 °C to +70 °C

• Protection rating : IP66, IP67, IP69K – UL Type 1, 2, 3R, 4, 4X, 12, 12K

• Standards & certifications : IEC/EN 60947-1 & 60947-5-1, UL 508, CSA C22.2 No. 14, cULus, CCC, RINA, EAC, CB, CE, UKCA

• Barcode (EAN13) : 8013975190500

• HS code : 85365080

✅ ADVANTAGES – LPCB104 Lovato Electric

• Elegant and robust design, ideal for modern industrial environments

• Optimal resistance to harsh conditions (IP66/67/69K)

• Very high mechanical life (up to 5 million cycles)

• Easy installation and integration thanks to Ø22 mm standard

• Wide compatibility with Lovato Electric accessories

• Compliant with major international standards (UL, CSA, CE, etc.)

🛠️ APPLICATIONS

• Control panels and electrical cabinets

• Industrial and automation control circuits

• Industrial machines and production systems

• Commercial and tertiary installations requiring clear signaling

• Applications requiring robustness and long service life

📄 APPROVALS AND STANDARDS

• IEC/EN 60947-1 & 60947-5-1

• UL 508

• CSA C22.2 No. 14

• cULus

• CCC, RINA, EAC, CB, CE, UKCA

🎯 RECOMMENDED ACCESSORIES – LPCB104 Lovato Electric

• Mounting adapter Ø22 mm: LPXAU120

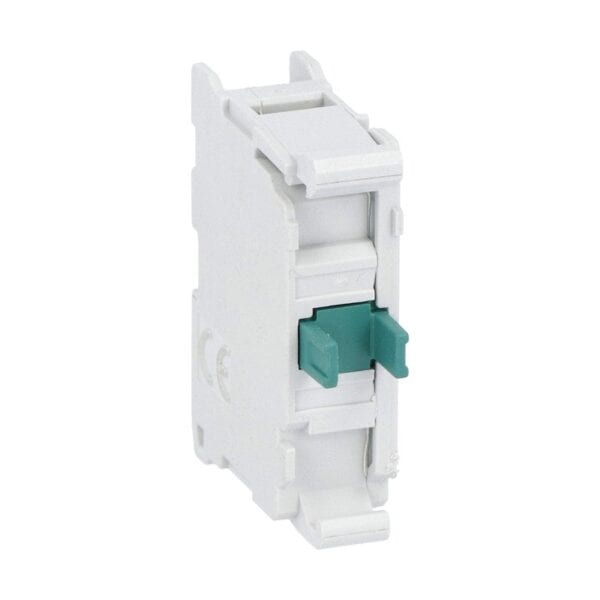

• Screw terminals: LPXC01, LPXCB10, LPXC10A

• Spring terminals: LPXCS10, LPXCS01

• Rings and supports: LPXAU00 (plastic), LPXAU01 (metal)

• Labels and covers: Compatible Lovato legend holders

💬 Need help choosing your pushbuttons or accessories? CONTACT US

If you cannot find the part or component on our site, do not hesitate to contact us immediately via our CONTACT US page. Our team is always available to assist you efficiently. Thus, you minimize downtime and, consequently, get your equipment back in service faster.

Every minute of downtime can, indeed, cause a loss of productivity. In the long term, this can lead to significant financial loss. For this reason, to avoid such risks, it is recommended to place your order as soon as possible. This ensures not only the continuity of your operations but also the safety of your business.

Moreover, thanks to our responsive customer service and efficient logistics chain, you benefit from both fast delivery and reliable technical support. Furthermore, this combination guarantees quality assistance at every step. Consequently, you minimize disruptions that could affect your activity and maintain optimal productivity.

⚡ So, don’t wait and order the LPCB104 Lovato Electric today to ensure safe, durable, and reliable operation of your equipment. Moreover, with our fast service, you benefit from immediate commissioning and, therefore, ensure the continuity of your operations while reducing downtime risks.

Additionally, this product is also available in other colors, allowing you to easily choose the one that best suits your needs.

Lovato Electric SM1P0160EKIT – Manual starter (motor protection circuit breaker) 690 VAC 1…1.6A 3p + E-Stop box type 4X

CA Product : BB22MMFRT

Manufacturer : Lovato electric

SKU : LPCB104

Bar code (EAN13) : 8013975190500

Technical data : Click here!
